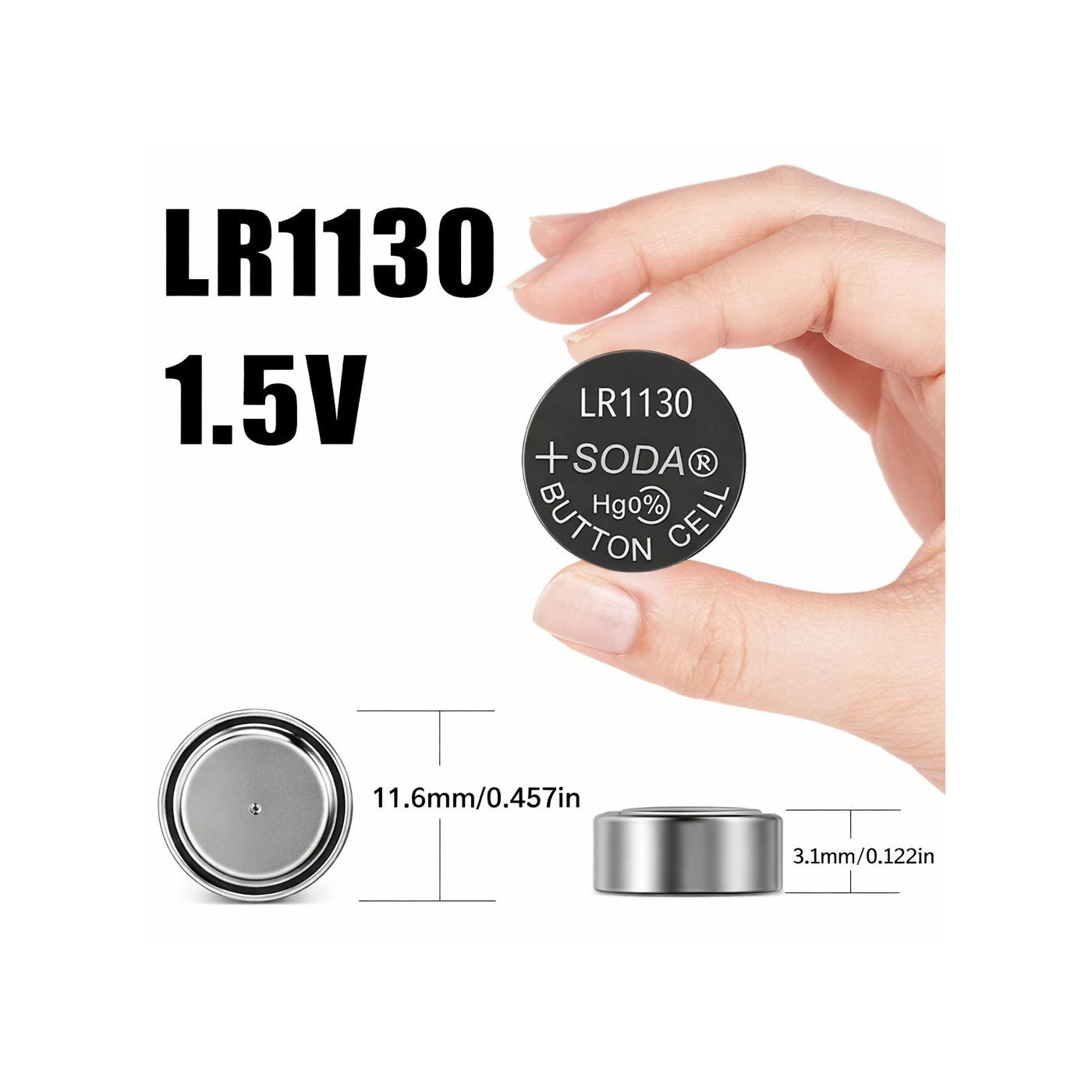

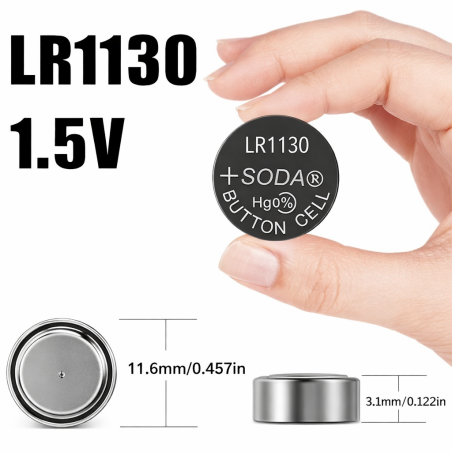

The LR1130 is a compact alkaline button cell battery designed for reliable power in small electronic devices. With a stable output of 1.5V, this battery delivers consistent performance and a long service life. It operates within a temperature range of 0°C to 60°C, with optimal performance around 20°C.
Applications
- Calculators
- Pedometers
- Small electronic devices
- Suitable for watches (silver oxide SR1130 recommended for optimal performance)
Features
- High energy density and reliable performance
- Stable discharge, even under pulse loads
- Good leakage resistance due to sealed construction
- Cost-efficient due to manganese dioxide technology
- Free from mercury (Hg), cadmium (Cd), and lead (Pb)
- Complies with EU battery directives
Specifications
- Model: LR1130 / AG10
- Voltage: 1.5V
- Chemistry: Alkaline
- Diameter: 11.6 mm
- Height: 3.05 mm
Alternative names
- LR54
- AG10
- 1168A
- D189 / D189A / 189
- G10 / G10A
- GP189 / GP89A
- KA54
- L1131
- V10GA
- BLR54 / B-LR54
